RK3588 OSNA ODBOR

● The TC- RK3588 core board combines high - performance computing, powerful AI capabilities, and rich interfaces, making it an ideal solution for a wide range of applications, including smart cities, industrial automation, intelligent surveillance, and multimedia entertainment. Whether you are a developer or an end - user, the RK3588 core board will surely bring you an outstanding experience.

● Officially supports mainstream Android, Debain, and Ubuntu operating system images, and can be applied to a variety of different application environments.

● Completely open source, complete SDK driver development kits, design schematics and other resources. Rk3588 datasheet is completely opened!

RK3588 Core Board Parameters

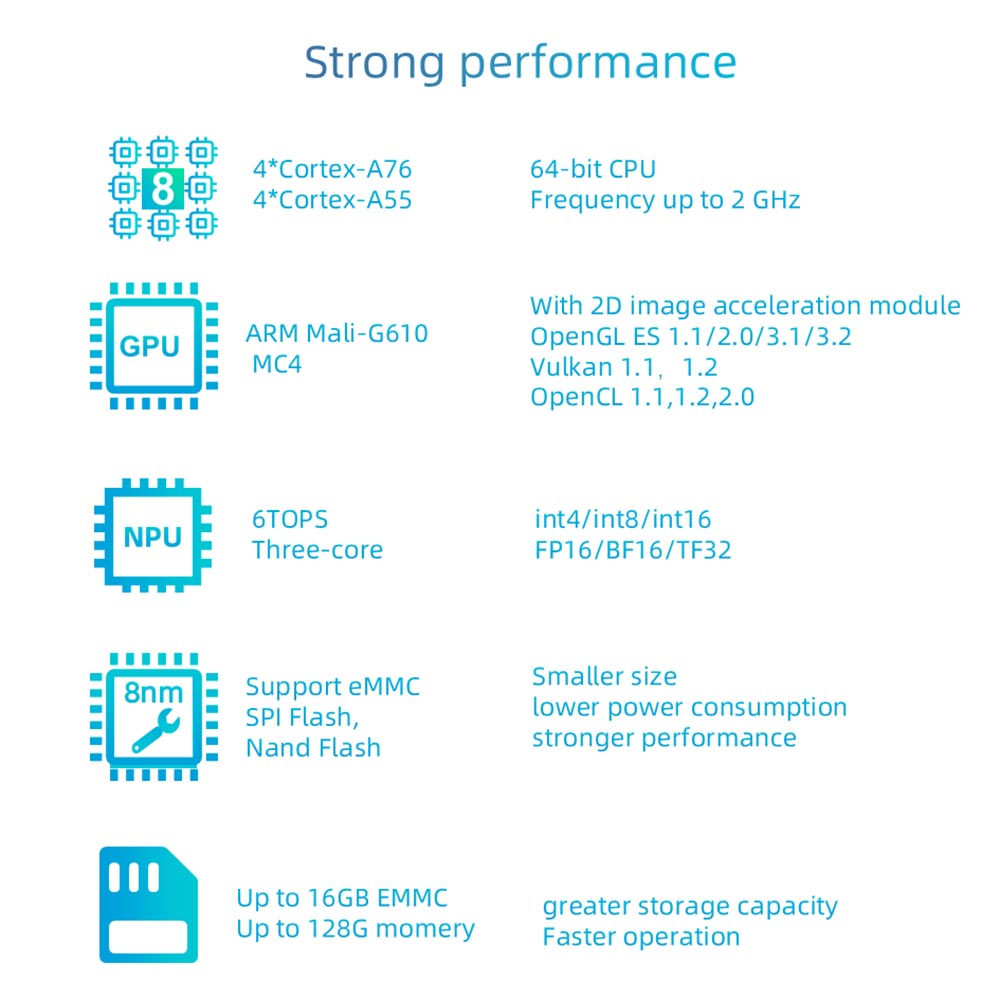

● SOC : RockChip RK3588

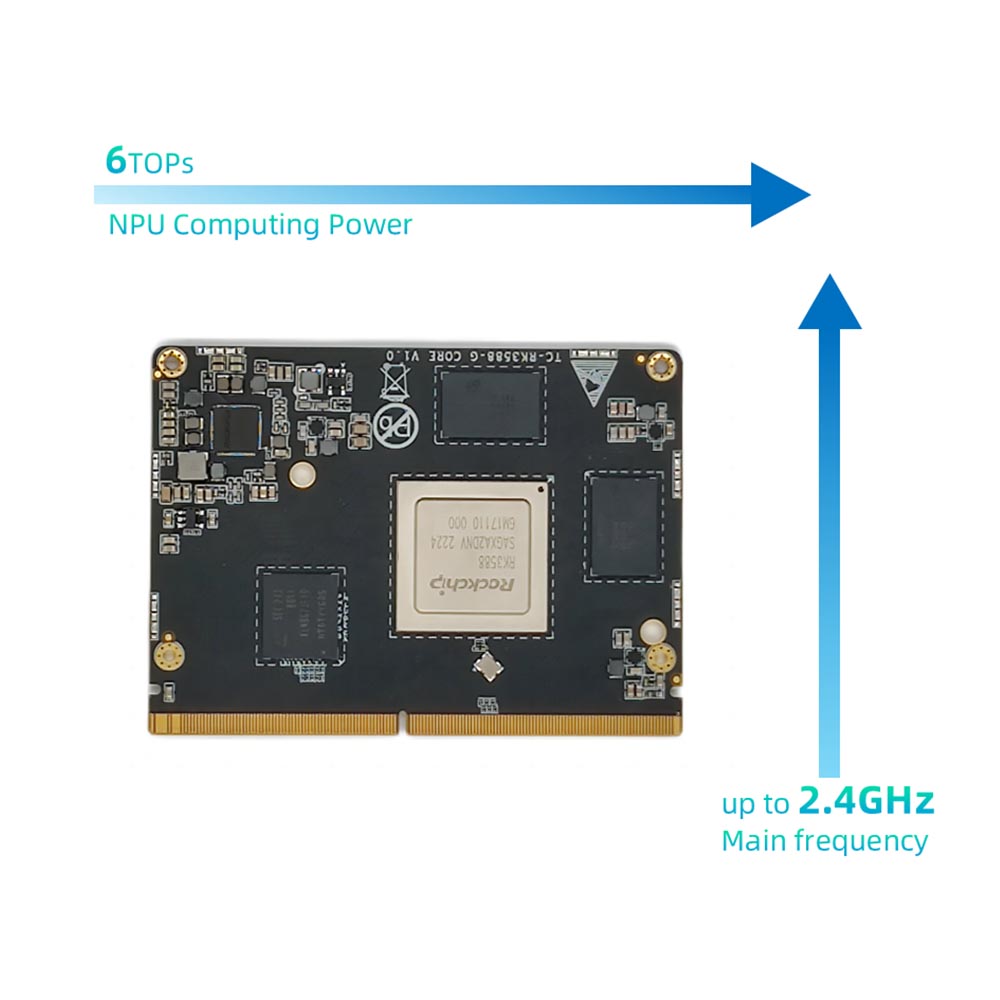

● CPU: Rockchip RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55), 8nm advanced process, main frequency up to 2.4GHz

● GPU: ARM Mali-G610 MP4 quad-core GPU, OpenGL ES3.2 / OpenCL 2.2 / Vulkan 1.1, 450 GFLOPS are supported

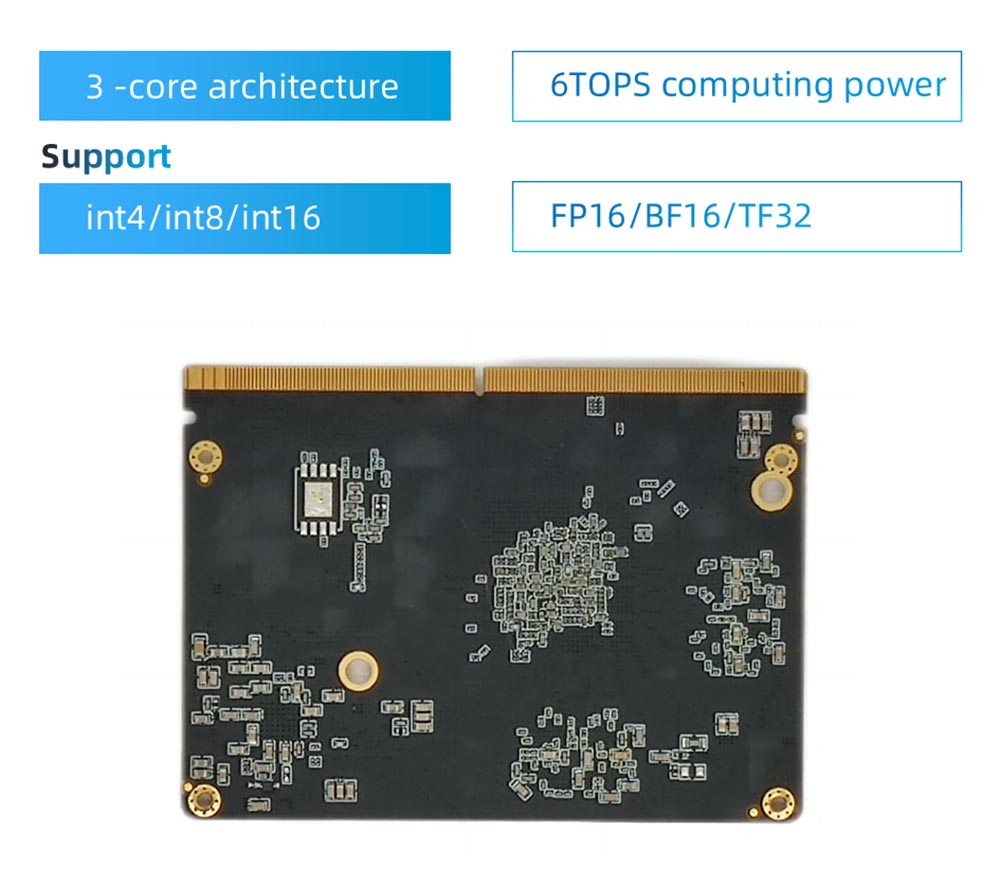

● NPU: NPU computing power up to 6 TOPS, support INT4/INT8/INT16 hybrid operations, can realize network model transformation based on TensorFlow / MXNet / PyTorch / Caffe and other series of frameworks

● ISP: Integrate 48MP ISP with HDR&3DNR

● VPU : Video Decoding:

◆ 8K@60fps H.265/VP9/AVS2

◆ 8K@30fps H.264 AVC/MVC

◆ 4K@60fps AV1

◆ 1080P@60fps MPEG-2/-1/VC-1/VP8

◆ Video Encoding:

◆ 8K@30fps encoding, support H.265/H.264

● Up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps-encoded video decoding

● memory : 4GB/8GB/16GB LPDDR4x

● storage: 32GB/64GB/128GB eMMC

● Ethernet : Dual Gigabit Ethernet（1000 M bps + 2.5G）,

● Wireless network: Support Mini PCIe Expansion 5G support Dual band WiFi6 , support BT5.0, dual antenna

● Display interfaces :

◆ 1 × HDMI 2.0 with 4K@60fps output

◆ 1 × HDMI 2.1, supports 8K@60fps output2 × MIPI DSI, supports 4K@60fps output

◆ 1 × eDP1.3 with 4K@60fps output

● Audio interface:

◆ 1 × Speaker, 1 × Headphone Output; 1 × HDMI 2.0 audio output

◆ 1 × HDMI 2.1 audio output 1 × MIC input ; 1 × LINE IN input

● Camera: Supports 2 * MIPI-CSI and 1 * HDMI IN input

● USB interface : 5CH USB2.0 HOST, 1CH USB3.0 HOST, 1CH USB TYPEC

● Serial: 1 × CAN, 2 × 232,1 × RS485, 1 X TTL debug serial port

● Storage expansion: PCIE NVMe M.2 interface, TF SLOT

● Extension interfaces: PCIe3.0 * 4 ; 12V/5V/3.3V Power supply output interface;

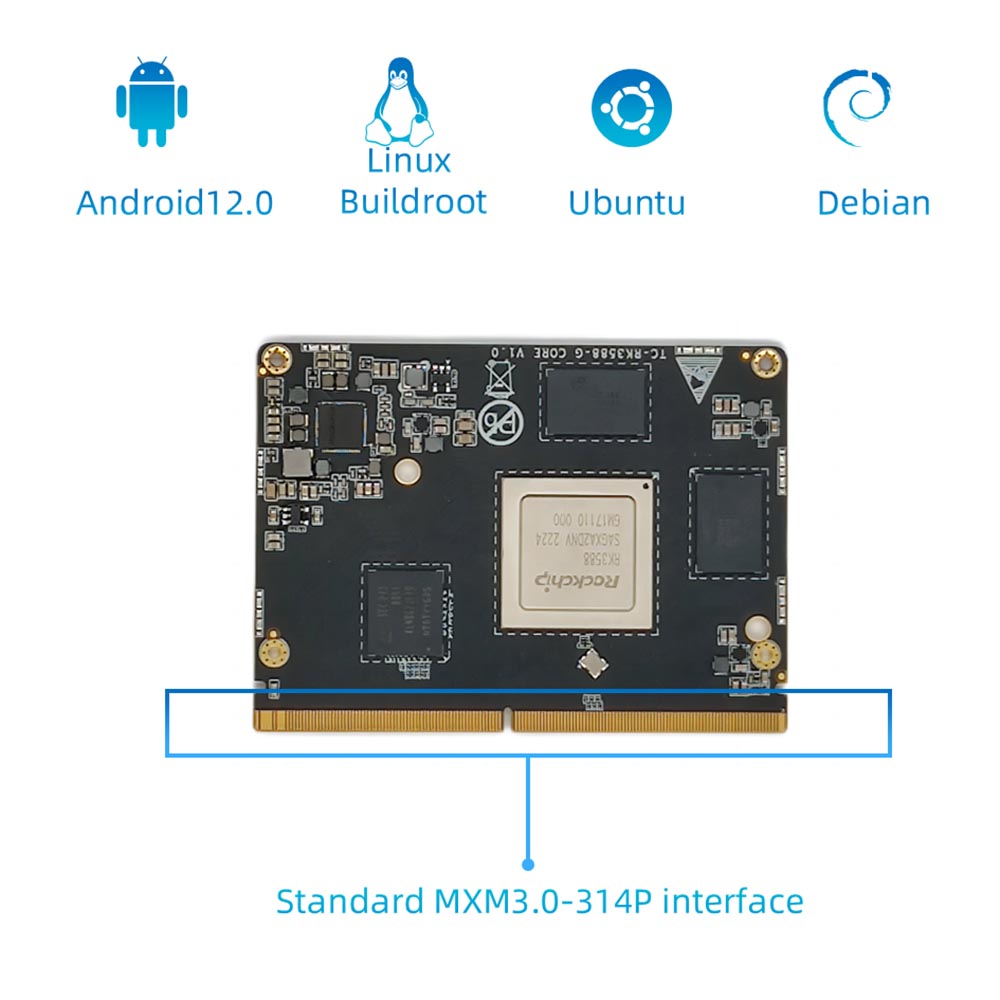

● System support : Support Android 12.0 , Linux Buildroot, Ubuntu, Debian

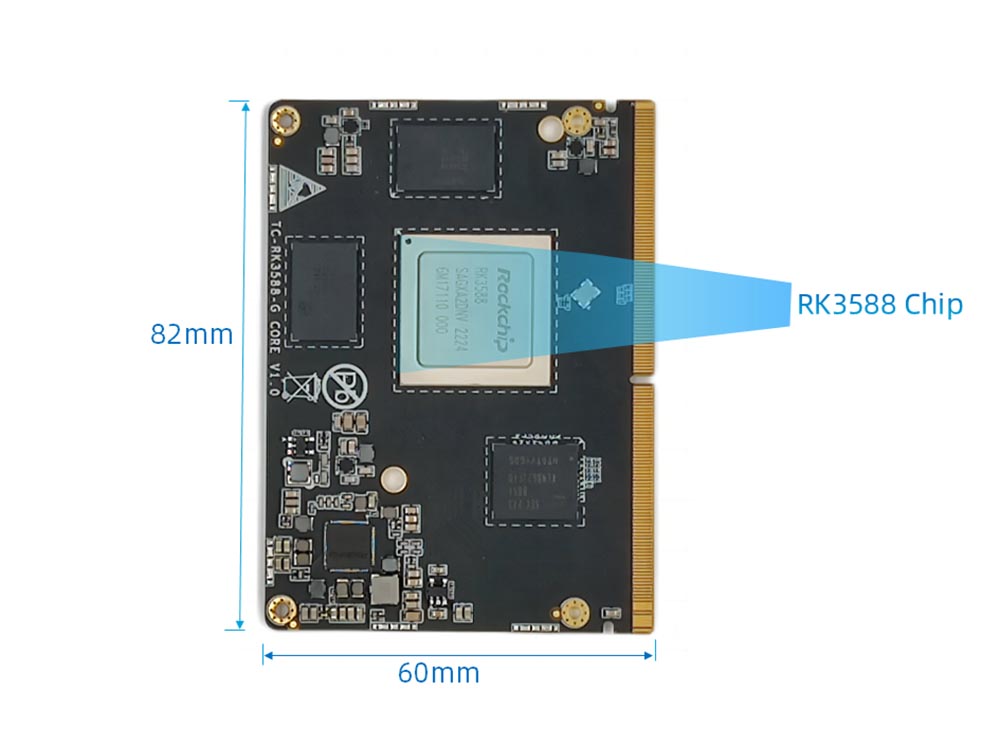

● Core board size: 82 * 60 mm

● Base plate size : The board layer is 4 layers, and the size is 175*115 mm

● Backplane power supply: 12V/2A above

● Operating temperature : -10℃～ 60℃

● Storage temperature: -20℃～ 70℃

● Storage humidity : 10%～ 80 %

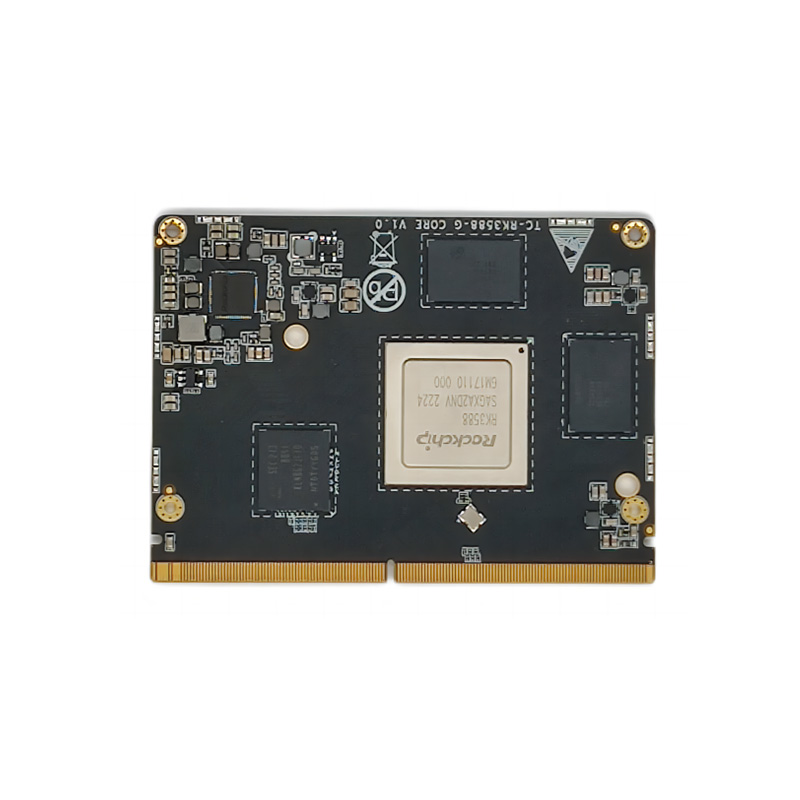

RK3588 Core Board Details

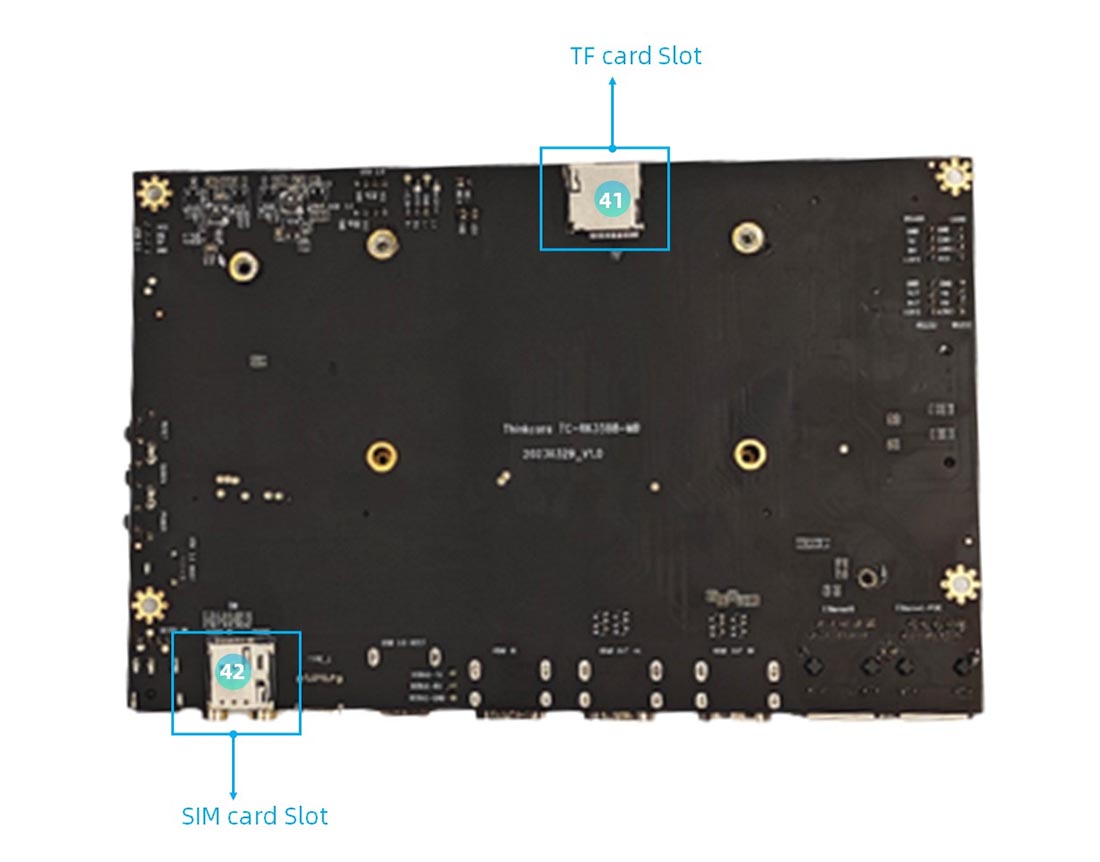

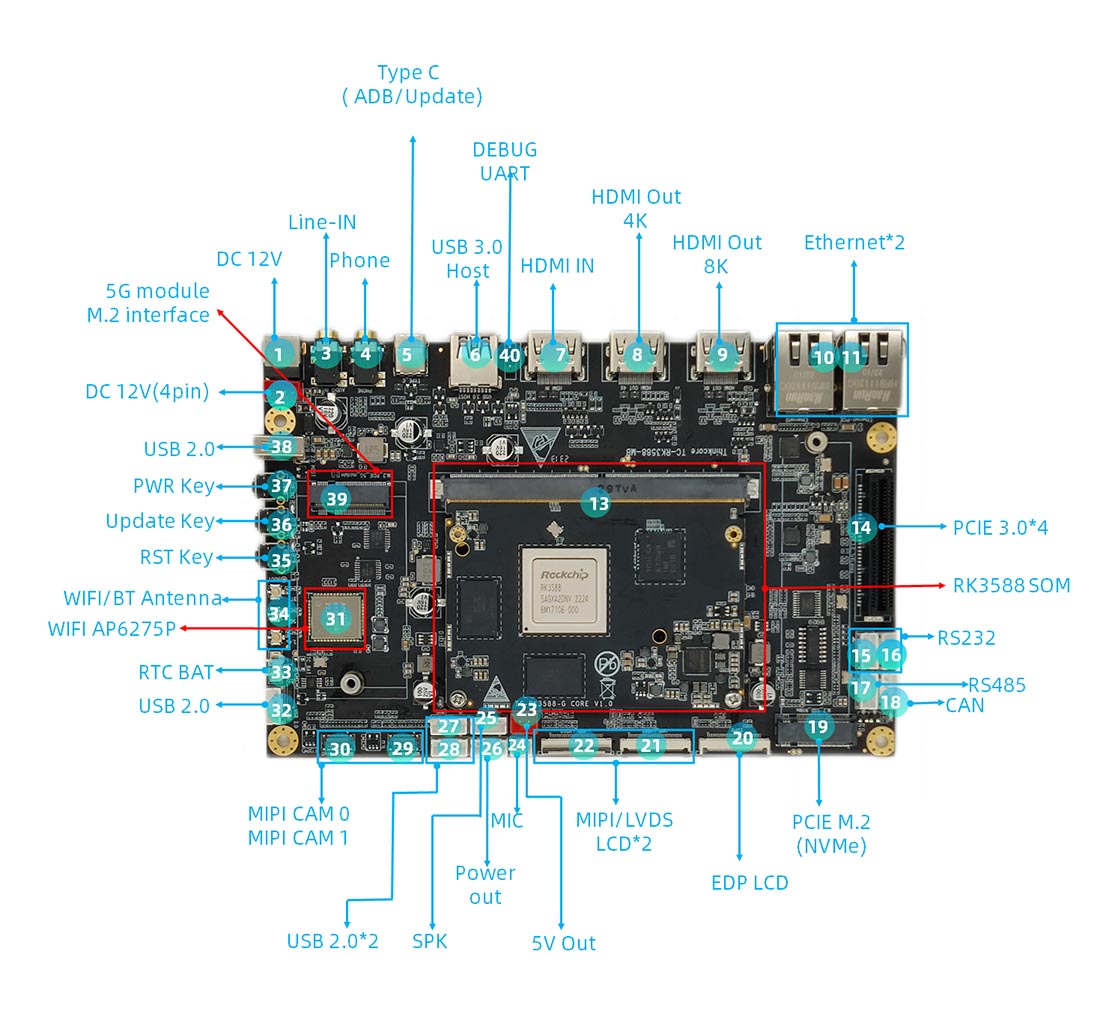

Matching RK3588 Motherboard
